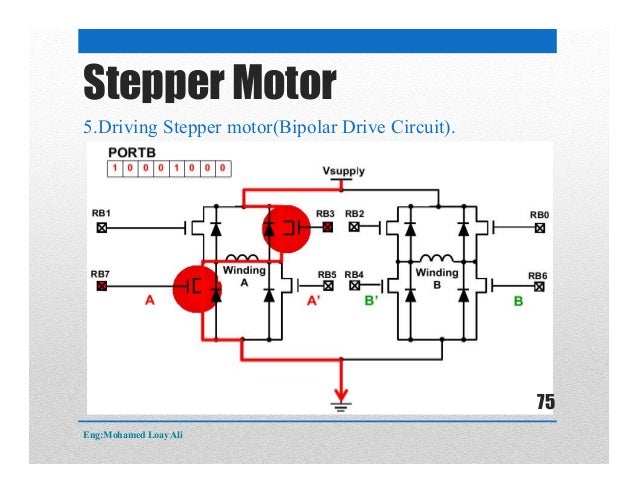

Dec 27, 2016 How to control a bipolar stepper motor with PWM. 2 A is a little high for most integrated circuit stepper drivers, you. Stepper motor controllers are more complex than DC motor controllers. Driving a bipolar motor with microstepping requires 2 complete H-bridges and 2 channels of PWM. The LV8741V is a 2-channel H-bridge driver IC that can switch a stepper motor driver. LV8741V: PWM Current Control Stepper Motor. Output short-circuit.

1. Pwm Motors
2. L298n Stepper Motor Driver Circuit
3. Stepper Motor Circuit Arduino

Driver circuits A typical digital logic output pin can only supply tens of MA of current. Even though they might require the same voltage levels, small external devices such as high-power LEDs, motors, speakers, light bulbs, buzzers, solenoids, and relays can require hundreds of MA. Larger devices might even need several amps. To control smaller devices that use DC, a transistor-based driver circuit can be used to boost the current to the levels needed for the device.

When voltage and current levels are in the correct range, the transistor acts like a high-current switch controlled by the lower current digital logic signal. A discrete is sometimes used instead of a newer transistor especially on older or low voltage circuits as shown below. On mbed, any GPIO pin could be used for the logic control input to the circuit with. Basic driver circuit using a BJT transistor The transistor primarily provides current gain.

PNP, NPN, or MOS transistors can also be used. The resistor used on the base of the transistor is typically around 1K ohm. On inductive loads (i.e., motors, relays, solenoids), a diode is often connected backwards across the load to suppress the voltage spikes (back EMF) generated when turning devices off.

Pwm Motors

(Recall on an inductor V=L.di/dt, so a negative voltage spike is produced when turning the device off). Sometimes the diode is also connected across the transistor instead of the load (this protects the transistor).

The shown below is a small discrete BJT transistor that can be used for a driver circuit needing less than 200MA. In this circuit with BJTs, Vcc can also be a higher voltage supply than the logic power supply. 6 or 12V DC is often needed for motors or relays. In battery operated devices, the load may be directly connected to the battery power and not pass through the voltage regulator. Many devices such as motors have a momentary large inrush current spike when they are first turned on and have a larger stall current, so be a bit conservative on the maximum current ratings. Depending on the current gain of the transistor used, some adjustments may be needed in the value of the base resistor.

A high gain TO-92 transistor such as the can drive up to 2A at up to 12V in this circuit. A pair contains two BJT transistors connected together for higher current gain. If a Darlington transistor in a TO-92 package such as a is used in the driver circuit, outputs of 1A at up to 100V are possible.

At high current levels, the transistor might get a bit hot. Transistors can even get too hot and burn out, if the circuit is not designed correctly. The transistor has to dissipate the power (V.I) across its C-E junction (i.e., the switch point) as heat.

This means that the transistor should either be completely “on” (saturation) or “off” (cutoff) to minimize heat dissipation and maximize efficiency. Larger power transistors have metal tabs on the case that can be connected to a heat sink for cooling. The pins on larger power transistors are often too large for standard breadboards and the spacing is not always compatible. PWM Control The logic signal (control) turns the transistor on and off to drive high current loads. For motor speed control or dimming lights, a is typically used for control instead of an analog output.

Digital PWM is more energy efficient than analog as it significantly reduces the heat dissipated by the transistor (i.e., it is always completely 'on' or 'off'). For motors, the PWM clock rate is typically in the tens of KHz range. For lighting, it needs to be greater than 50Hz or perhaps 100Hz. Early studies for electric power systems showed that many people have headaches caused by lighting systems that use less than 50Hz AC even if they do not directly perceive a flicker. A uses PWM to drive audio speakers and the PWM clock rate is typically around ten times the highest frequency in the audio signal. A is sometimes added on the output.

The mbed shows an example using PWM to dim an LED. Even when using PWM, some large transistors may require a for proper cooling.

If the transistor gets too hot to touch, it needs a larger heatsink. Noise Issues from High Current Loads Switching high current inductive loads and motor arcing can put noise spikes or voltage surges on power supply lines and it is possible that they can become large enough or that the supply voltage could momentarily drop low enough when turning on a large inductive load to cause a microprocessor to crash and even reset when using the same power supply as the load, so additional power supply may need to be added near the high current load, or a separate power supply can be used for the high current load. If high voltage spikes, surges, or electrostatic discharge (static electricity) are a potential issue, (also known as transorbs) or (also known as MOVs) are sometimes connected across a high current load or the high voltage supply lines for even more protection. MOVs are typically found in AC surge protector outlet strips.

A are available in different voltage and current ranges. These devices typically clip off voltage spikes above a fixed threshold voltage.It is common to pick a transorb or MOV with a clip-off threshold voltage a bit higher than the normal operating range found in the circuit (20%?). Activated transorbs or MOVs have to dissipate the energy in the clipped off voltage spike and they are typically rated by the amount of energy they can absorb before overheating and burning out, so the duration of the overvoltage spike needs to be relatively short.

Driver ICs As an alternative to using discrete transistors, special purpose driver ICs are also available that can drive multiple devices. These ICs contain several internal transistor driver circuits similar to the one just described above. A small number are still available in a DIP package that can plug into a breadboard such as the 8-channel 500MA 50V driver seen below, but most new ones are surface mount ICs that will require a breakout board for use on a breadboard. TLC5940 16 channel PWM Driver The is a 16 channel driver IC with 12 bit duty cycle PWM control (0 - 4095), 6 bit current limit control (0 - 63), and a daisy chainable serial interface (SPI). Maximum drive current is 120 MA per output. It is handy for expanding the number of high current drive PWM outputs available.

This IC was originally targeted for driving LED arrays. 16 PWM outputs might sound like a lot, but a humanoid robot might need over twenty to control all of the servo motors used the joints. In addition to the DIP package seen above, is it also available in surface mount. Sparkfun makes the breakout board seen below using the surface mount package. A is available for mbed. There is even a special version of an that sets up a 16 servo array. Driver ICs may also require heat sinks or other cooling considerations when used at high current levels.

Devices that require several amps of current will need a more complex driver circuit with larger power transistors on heat sinks, and more than one transistor current amplification stage may be required. It is not advisable or reliable in the long term to connect several small BJT transistors in parallel to increase the current output provided by the driver circuit; a larger power transistor must be used. Driver circuits can be built using small discrete transistors such as the TO-92 size 2N3904 on a standard breadboard.

If even higher current drive is needed, the larger power transistors used will not fit directly on a breadboard and the wires are not large enough. Having these devices already assembled on a small PCB will save prototyping time with mbed, so those options will be the primary focus here. For is often used to drive the speaker. New class D audio amplifiers actually use PWM. MOSFETs At higher voltage and high current levels, newer transistors are more efficient than the older BJTs. In BJTs, the base current controls the switch, but in MOSFETs it is the gate voltage. A common N-channel MOSFET transistor symbol and pinout is shown below.

N-Channel MOSFET transistor symbol and TO-220 package pinout The board seen above uses the RFP30N06LE MOSFET transistor rated at 60V and 30A for higher current loads. The trace size on the PCB and the wire size for the screw terminals limits loads to around 4A. The screw terminals are used for high current connections since the wires need to be larger than the standard breadboard jumper wires. The schematic is seen in the image below. This special MOSFET has a very low gate input voltage that works with 3.3V logic signals like those on mbed. A typical MOSFET runs just a bit more efficiently if the gate input is a bit higher than the supply voltage. Special MOSFET driver ICs such as the use a to drive the gate voltage higher on higher voltage MOSFET driver circuits using a normal digital logic level control signal (i.e., useful when load voltage (RAW in schematic) is larger then the logic supply voltage).

The is used with a MOSFET in many laptop PCs and cellphones to turn power on and off for power management and is available in an 8-pin DIP package or surface mount. Overvoltage and short circuit protection can also be added using the LTC1155. Some large MOSFETs including the one on the Sparkfun board already contain an internal for driving inductive loads. If this is not the case, it would be a good idea to add an external diode when driving inductive loads. MOSFET driver circuit for high current DC loads. Floating Inputs Note the 10K pull-down resistor on the control input line.

L298n Stepper Motor Driver Circuit

This prevents the gate input from floating high and turning on the device when nothing is driving the input. If it did float, it is also possible that the MOSFET might oscillate and overheat. In most cases, the device should be off if something is wrong. This can happen if a wire was not connected or perhaps briefly when the microcontroller is reset and GPIO pins reset to input mode.

It also might happen if the power supply for the microcontroller is not on, but another power supply for the device is on. A similar design issue of leaving control inputs floating in a computer control system in a hydroelectric power plant once caused a major power blackout in California when power was lost on the computer. Wiring mbed MOSFET PCB 5V.

Stepper Motor Circuit Arduino

Safety Note on High Voltages A high voltage power line shorted to a digital logic circuit on a breadboard can blow up an entire computer system, or cause electrocution if touched. For safety, keep the wires for any high voltage and/or high current devices well away from the breadboard and do not touch them when power is on. Even a momentary wire short can blow things ups. An inline fuse and even a breaker is not a bad idea. Long before a standard household AC circuit breaker trips, electronic parts will blow out with a short. Make sure that the bottom side of the PCB does not short out on any metallic surfaces. Breadboard contacts and small jumper wires only handle about one amp.

The relay boards typically use screw terminals to attach the larger wires needed for the external device. Just driving the coil of a large relay requires most of the additional current that can be supplied to mbed via the USB cable, so an external DC power supply will likely be needed to power the relay coils and the load of the external device.

For electrical isolation, when using a relay to control external AC devices or high voltage DC devices, do not connect the grounds on the power supplies from the control side to the load side. Here is an example program the turns the relay on and off every 2 seconds.
